Description

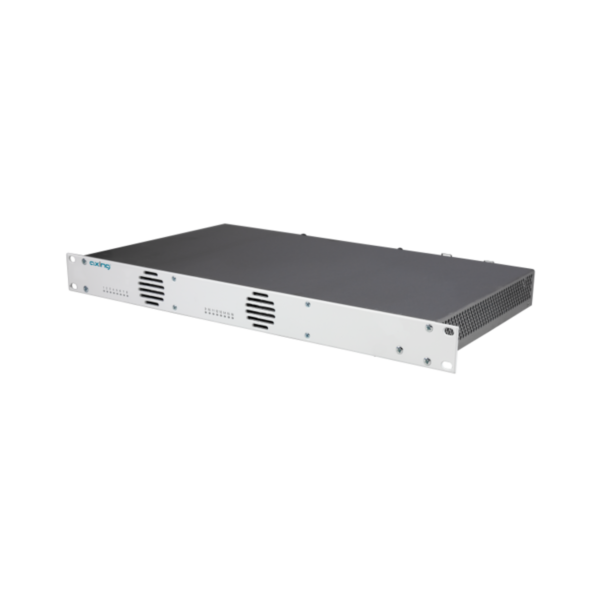

| Type | SKF 82-00 |
|---|---|
| Order no. | SKF08200 |
| GTIN | 7611682008234 |
| PE | 1 |
| VE | 1 |
| EU custom tariff number | 85256000 |
| Inputs | |
|---|---|
| Number of tuners | 8 × DVB-S/S2/S2x/T/T2/C |
| Connector | 8 × F-female |
| Frequency range | 900…2150 MHz @ DVB-S/S2/S2X 50…898 MHz @ DVB-C 50…898 MHz @ DVB-T/T2 |
| Channel bandwidth | 5/6/7/8 MHz @ DVB-T/T2 |
| Input level | 43…84 dBµV @ DVB-S/S2/S2X 49…84 dBµV @ DVB-C 39…84 dBµV @ DVB-T/T2 |
| LNB voltage | 13/17 V; 22 kHz on/off; DiSEqC 1.0 |
| Max. LNB current | 250 mA per input 1000 mA per device |
| Input modulation | |
| Type | QPSK/8PSK/ 8APSK/16APSK/32APSK @ DVB-S/S2/S2X QAM16, QAM32, QAM64, QAM128, QAM256 @ DVB-C QPSK, QAM16, QAM64 @ DVB-T QPSK, QAM16, QAM64, QAM256 @ DVB-T2 |
| Compliance | DVB-S = EN 300 421 DVB-S2 = EN 302 307-1V1.4.1 DVB-S2X = EN 302 307-2V1.1.1 DVB-C = EN 300 429/ITU-TJ.83 Annex A/C DVB-T = EN 300 744 DVB-T2 = ETSI EN 302 755 |
| Supported input transport streams | MPEG-4 ISO/IEC 14496-3 AAC-Profile Level 2 (AAC-LC) |
| Error correction | auto |
| Symbol rate | 1.5…45 MS/s (< 40 MS/s in 32APSK) @ DVB-S/S2/S2X 1…7.2 Mbaud @ DVB-C |
| Output | |
| Number of channels | 16* × FM-Stereo |
| Frequency range | 87.5…108 MHz |
| Connector | 1 × F-female |
| Impedance | 75 Ω |
| Output level adjustable | 65…85 dBµV |
| Output modulation | |
| Type | FM |
| Data service | RDS (service name converted from DVB-SI data) |
| Interfaces | |
| Ethernet connectors (LAN) | 1 × RJ 45 |
| Ethernet standards | IEEE 802.3, 100 Base-T |
| General | |
| Operating voltage | 100…240 VAC/50…60 Hz |
| Power consumption | 50 W |
| Operating temperature range (acc. to EN 60065) | −10 °C … +50 °C |
| Dimensions (W × H × D) appr. | 480 × 253 × 47 mm |
| Weight | 4.50 kg |
| Comments | *24 × FM stereo with software extension SKS 1-24 (must be ordered with the purchase of the unit and cannot be subsequently extended by the customer) |
